Checkpoint ALR 3 Gen 3

Price: £2400

Available Colours

Dark Carmine

Medium Large

Error: can't render field data in the current format. You can try "Get child value" callback. Available children: item-0. Or one of array-related callbacks - "Multiple select field values", "Checkbox field values", "Checked values list" etc

Can’t Find the Bike You’re Looking For?

If you can’t see the exact bike you want, don’t worry — we’ll do our best to get it for you.

We are a TREK specialist retailer and can source specific models or sizes on request.

For more colour and size options take a look on the TREK website and then speak to a member of our team, we will make every effort to find the perfect bike to suit your needs.

Product Details

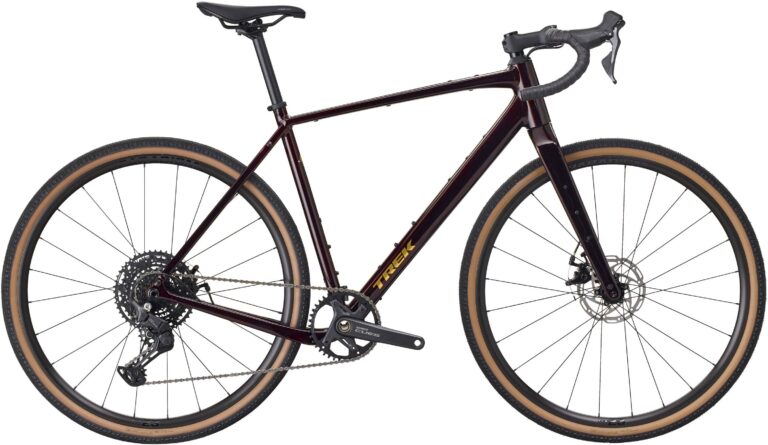

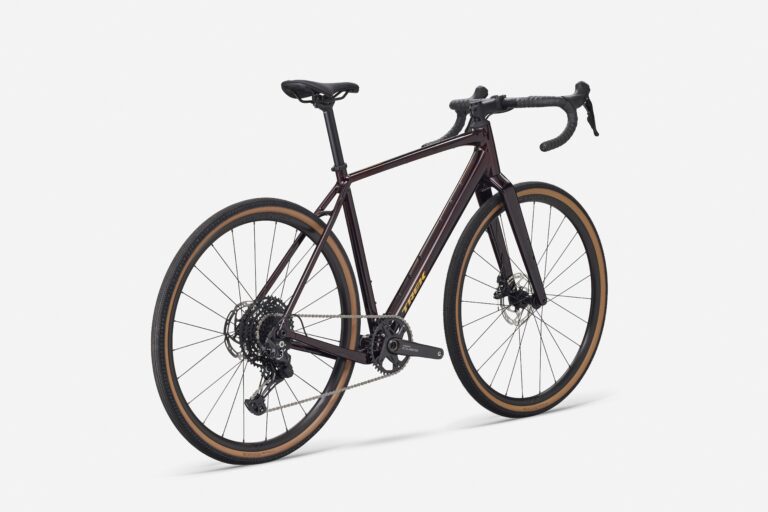

The Checkpoint ALR 3 is an adventure-ready alumin’um gravel bike built for exploring anywhere. Its modern endurance geometry keeps you comfortable over gravel roads or potholes, while a carbon fork helps cut down the road vibrations. It’s spec’d to go anywhere without breaking the bank, with Bontrager Paradigm wheels, clearance for 50 mm tyres,10-speed Shimano CUES 6000 shifting, mechanical disc brakes and loads of mounts for bags and accessories.

Product Specs

Frame	300 Series Alpha Aluminium, internal cable routing, 3S chain keeper, T47, UDH, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142×12 mm chamfered thru axle

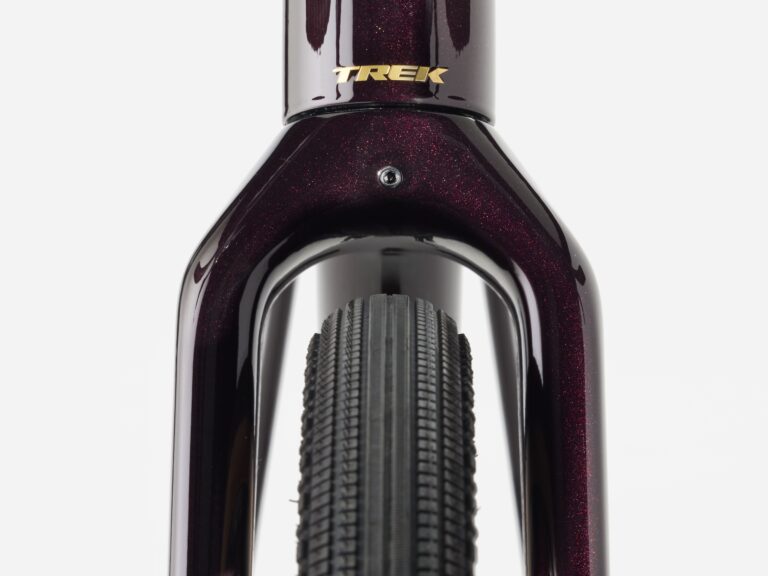

Fork	Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12×100 mm thru axle
Weight	ML – 10.41 kg / 22.96 lbs (with TLR sealant, no tubes)
Weight Limit	125 kg (275 lb) total system weight (bike, rider, and cargo)
Shifter	Shimano CUES 10-speed Right STU303010R

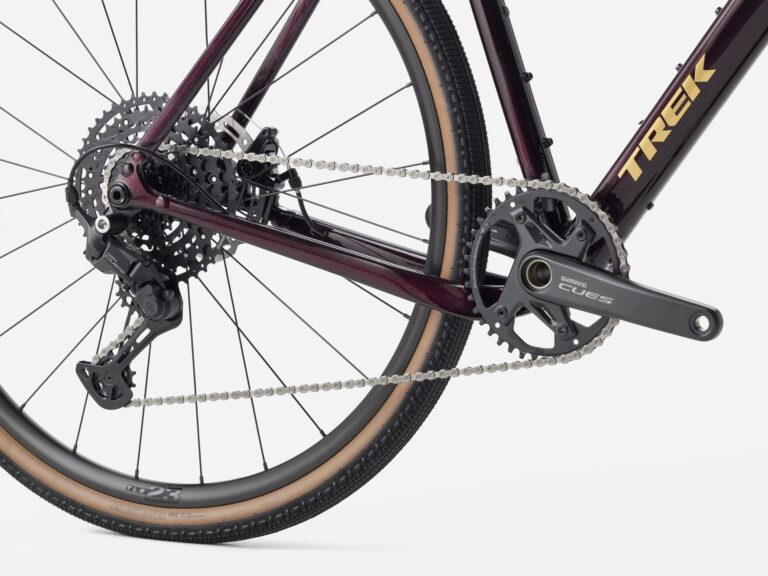

Rear Derailleur	Shimano CUES U6000 GS
Crankset	XS, S: Shimano CUES FCU60301, 40T, 165 mm M, ML: Shimano CUES FCU60301, 40T, 170 mm L, XL: Shimano CUES FCU60301, 40T, 172.5 mm
Bottom Bracket	Praxis, T47 threaded, internal bearing
Cassette	Shimano CUES LG300, LINKGLIDE, 11–48, 10-speed
Chain	Shimano LG500
Max Chainring Size	1x: 44T \| 2x: 46/30
Front Hub	Bontrager alloy, sealed bearing, CentreLock disc, 100×12 mm thru axle
Rear Hub	Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142×12 mm thru axle
Rims	Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
Spokes	14 g stainless steel, black
Tyres	Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700×42 mm
Tyre Sealant	Bontrager TLR sealant, 180 ml / 6 oz
Max Tyre Size	50 mm without mudguards, 42 mm with mudguards
Saddle	Verse Short Comp, steel rails, 145 mm width
Seatpost	Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

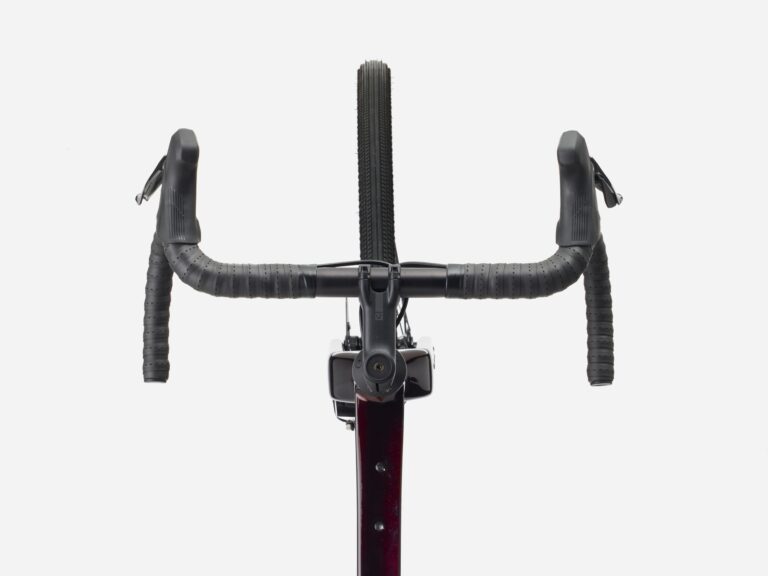

Handlebar	XS, S: Bontrager Elite Gravel, 40 cm M, ML: Bontrager Elite Gravel, 42 cm L: Bontrager Elite Gravel, 44 cm XL: Bontrager Elite Gravel, 46 cm
Handlebar Tape	Bontrager Supertack Perf tape
Stem	XS: 70 mm S, M: 80 mm ML, L: 90 mm XL: 100 mm Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree
Brakes	Shimano CUES U3030 levers with Tektro C550 mechanical disc brakes, dual piston, flat mount
Brake Rotors	Tektro, CentreLock, 160 mm (max 180 mm front & rear)

Please note: Manufacturers can sometimes change the specification of the products from time to time.
