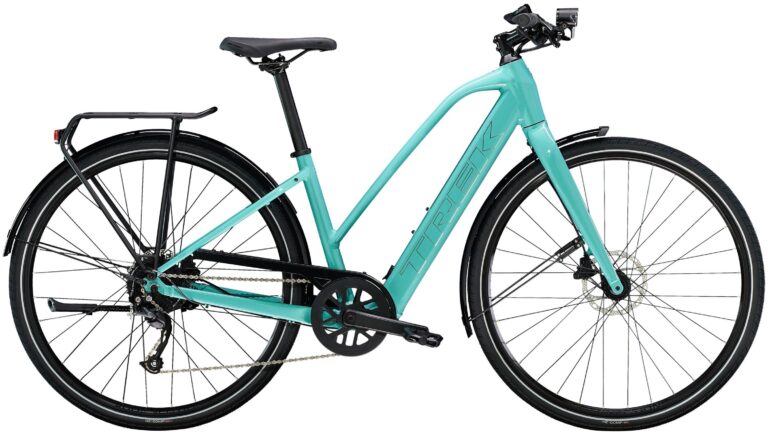

FX+ 2 Stagger

FXPlus2Stagger_23_35843_B_Primary FXPlus2Stagger_23_35843_B_Alt8 FXPlus2Stagger_23_35843_B_Alt9 FXPlus2Stagger_23_35843_B_Portrait FXPlus2Stagger_23_35843_B_Alt1 FXPlus2Stagger_23_35843_B_Alt2 FXPlus2Stagger_23_35843_B_Alt3 FXPlus2Stagger_23_35843_B_Alt4 FXPlus2Stagger_23_35843_B_Alt5 FXPlus2Stagger_23_35843_B_Alt6 FXPlus2Stagger_23_35843_B_Alt7

Price: £2,250

Available Colours

FXPlus2Stagger_23_35843_B_Primary
Blue Sage
Large
Error: can't render field data in the current format. You can try "Get child value" callback. Available children: item-0. Or one of array-related callbacks - "Multiple select field values", "Checkbox field values", "Checked values list" etc

Can’t Find the Bike You’re Looking For?

If you can’t see the exact bike you want, don’t worry — we’ll do our best to get it for you.

We are a TREK specialist retailer and can source specific models or sizes on request.
For more colour and size options take a look on the TREK website and then speak to a member of our team, we will make every effort to find the perfect bike to suit your needs.
MAKE AN ENQUIRY
CALL: 01509 269663

Product Details

The FX+ 2 Stagger is a lightweight city electric bike that’s designed to make everyday excursions faster and more fun. It has an intuitive and natural feeling pedal-assist system that makes exploring your city extra exciting and cruising up hills a breeze. Useful accessories like a rack and mudguards add even more versatility to this bike.

Product Specs

Frame Alpha Platinum Aluminum, internal cable routing, dealer removable battery, rack and mudguard mounts, post mount disc, kickstand mount
Fork FX Carbon, hidden fender mounts, flat mount disc, internal routing, 100×12 thru axle
Hub front Formula alloy, CenterLock disc, 100×12 mm thru-axle
Skewer front Bontrager Switch thru axle
Hub rear Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142×12 mm thru axle
Skewer rear Bontrager Switch thru axle
Rim Bontrager Paradigm, Tubeless Ready, 32-hole, 21 mm width, Presta valve
Spokes 14 g stainless steel, black
Tyre Bontrager H2 Hard Case Lite, wire bead, 30 tpi, 700×40 mm
Max tyre size 700×42 mm
Battery TQ 360Wh
Charger TQ 4A charger
Computer TQ LED display with Bluetooth & ANT+ connectivity
Motor TQ-HPR50, 50 Nm, 250W continuous rated, 300W peak power
Shifter Shimano U6000, 10-speed
Rear derailleur Shimano CUES U6000 GS
Crank ProWheel Alloy, 46T narrow-wide chainring, 170 mm arm length, ISIS spline
Cassette Shimano CUES LG400, LINKGLIDE, 11-48, 10-speed
Chain Shimano LG500, 9/10/11-speed
Pedal Bontrager City pedals
Max. chainring size 1x: 46T
Saddle Bontrager Verse Comp, steel rails, 165 mm width
Seatpost Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 400 mm length

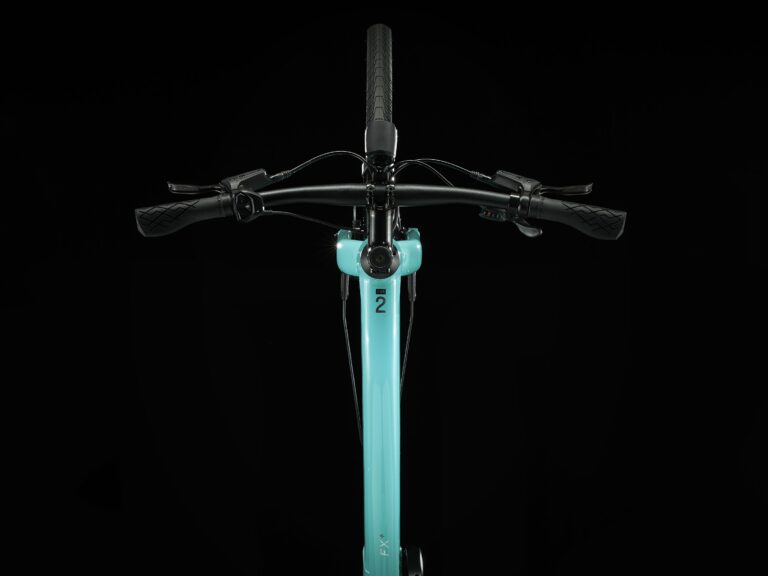

Handlebar/Stem (Integrated) Size S, M: Bontrager Integrated handlebar/stem, 15 mm rise, 640 mm width, 0° stem rise, 90 mm virtual length
Size L, XL: Bontrager Integrated handlebar/stem, 15 mm rise, 680 mm width, 0° stem rise, 90 mm virtual length
Grips Bontrager Satellite Elite, alloy lock-on

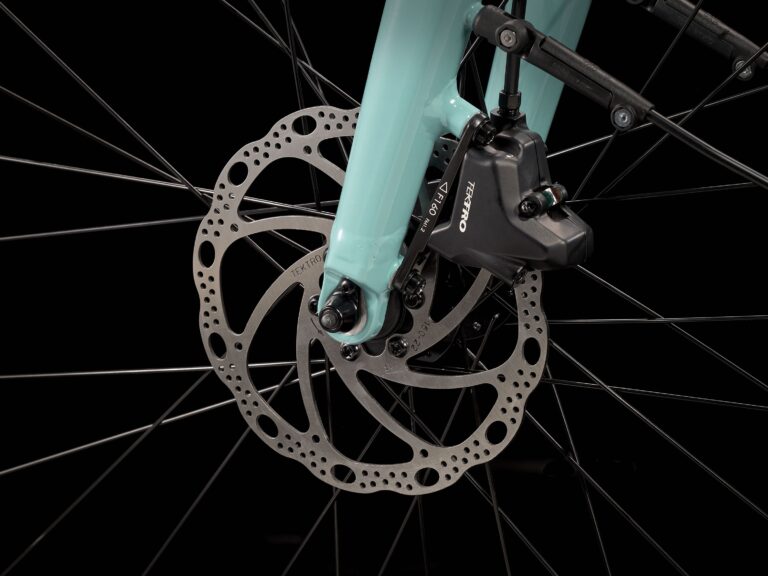

Brake Shimano hydraulic disc, RS600 lever, RS405 calliper
Brake rotor Size S, M, L, XL: Shimano EM810, CenterLock 160 mm
Size S, M, L, XL: Shimano RT-MT800, CentreLock, 180 mm
Rotor size Max rotor sizes: 180 mm front & rear
Light Size S, M, L, XL: Spanninga GLOW XE for e-bike
Size S, M, L, XL: Herrmans H-Black MR9-E
Kickstand Pletscher Comp 18
Cargo rack MIK-compatible alloy rear rack
Mudguard Trek FX+ 7 Rear Mudguard
Weight L – 19.30 kg / 42.55 lbs
Weight limit Maximum combined weight (bike, rider & cargo): 136 kg / 300 lb

Please note: Manufacturers can sometimes change the specification of the products from time to time.
