Marlin+ 8

Price: £2650

Available Colours

Fury Red/Lithium Fade

Medium

Error: can't render field data in the current format. You can try "Get child value" callback. Available children: item-0. Or one of array-related callbacks - "Multiple select field values", "Checkbox field values", "Checked values list" etc

Can’t Find the Bike You’re Looking For?

If you can’t see the exact bike you want, don’t worry — we’ll do our best to get it for you.

We are a TREK specialist retailer and can source specific models or sizes on request.

For more colour and size options take a look on the TREK website and then speak to a member of our team, we will make every effort to find the perfect bike to suit your needs.

Product Details

The Marlin+ 8 is an electric mountain bike that’s ready to up your game on the trail. Its Bosch Active Line Plus motor gives you just the boost you need for getting up steep climbs and riding further, and doesn’t break the bank, and a 120 mm suspension fork keeps handling smooth through the rough stuff. Upgraded components, like wide tubeless-ready wheels and tyres and a 12-speed Shimano drivetrain make this a trail-savvy ride that’s ready to go anywhere.

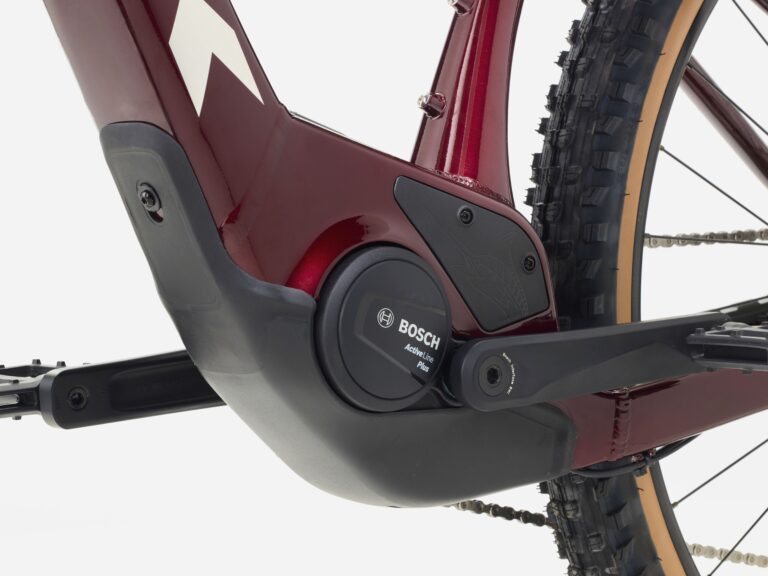

Smooth, quiet support – Bosch Active Line Plus mid-power motor doles out a smooth 50 Nm of torque. Its controlled acceleration, low pedal resistance and super-quiet operation give you a natural-feeling, unobtrusive ride.

Product Specs

*Please note – spec applies to all sizes unless listed separately
Frame	XS: Alpha Gold Aluminium, curved top tube, tapered head tube, internal routing, rack, mudguard & kickstand mount, UDH, Boost148, 12 mm thru axle S, M, L, XL: Alpha Gold Aluminium, tapered head tube, internal routing, rack, mudguard & kickstand mount, UDH, Boost148, 12 mm thru axle
Fork	XS: RockShox Recon Silver RL, Solo Air, Motion Control, 46 mm offset, Boost110, 100 mm travel S: RockShox Recon Silver RL, Solo Air, Motion Control, 46 mm offset, Boost110, 120 mm travel M, L, XL: RockShox Recon Silver RL, Solo Air, Motion Control, 42 mm offset, Boost110, 120 mm travel
Front Hub	Shimano TC500 alloy, CentreLock, 110×15 mm thru axle
Rear Hub	Shimano TC500 alloy, CentreLock, 148×12 mm thru axle
Rims	Bontrager Line TLR 30, Tubeless-Ready, 28-hole / 32-hole, Presta valve
Tyres	XS, S: Bontrager Gunnison Pro XR 27.5×2.60″ M, L, XL: Bontrager Gunnison Pro XR 29×2.60″
Max Tyre Size	29×2.6″ (XS: 27.5×2.6″)
Battery	Bosch CompactTube 400 Wh
Motor	Bosch Active Line Plus, 50 Nm
Display	Bosch Purion 200
Charger	Bosch standard 2A, smart system
Shifter	Shimano Deore M6100, 12-speed
Rear Derailleur	Shimano Deore M6100, long cage
Crank	FSA CK-220, 165 mm
Chainring	FSA 32T steel
Cassette	Shimano Deore M6100, 10-51, 12-speed
Chain	Shimano Deore M6100
Pedals	VP-536 nylon platform
Max Chainring	1x: 36T (min 32T)
Saddle	Bontrager Verse P3, steel rails
Seatpost	XS, S: TranzX JD-YSP18, 100 mm dropper M, L, XL: TranzX JD-YSP18, 150 mm dropper
Handlebar	XS, S: Bontrager alloy, 720 mm M, L, XL: Bontrager Comp alloy, 780 mm
Stem	XS, S: 35 mm M, L: 50 mm XL: 60 mm
Grips	Trek Line Comp, lock-on
Headset	Semi-integrated, 1-1/8″ – 1.5″
Brakes	Shimano 4-piston hydraulic disc, MT4100 / MT420
Brake Rotor	Shimano RT64, CentreLock, 203 mm
Max Rotor Size	Frame 203 mm, min 180 mm
Weight	M – 21.89 kg / 48.26 lbs
Weight Limit	136 kg total system weight

Please note: Manufacturers can sometimes change the specification of the products from time to time.
